Convertendo Single Instance para RAC One Node

;

$conteúdo = [

E ai pessoal, tudo bem? Nesse artigo, gostaria de aproveitar para compartilhar por aqui um laboratório que fiz recentemente da conversão de um banco single instance para um Rac One Node através do DBCA.

Para esse laboratório vou usar um banco orcl19r que está em RAC dividido nos nós orcl19r1 e orcl19r2

[oracle@ol7-rac01 ~]$ srvctl status database -d orcl19r
Instance orcl19r1 is running on node ol7-rac01
Instance orcl19r2 is running on node ol7-rac02
[oracle@ol7-rac01 ~]$

E também criei um outro banco em single instance chamado de orcl

SQL> SELECT NAME,OPEN_MODE from v$database;
NAME      OPEN_MODE
--------- --------------------
ORCL      READ WRITE

Agora para começar precisamos gerar os templates do nosso banco single instance, para isso, vou começar iniciando o dbca no banco ORCL e realizando os seguintes passos

Selecionar o Manage templates

Na próxima página vou criar um template com o nome de orcl_convert e marcarei para ele o diretório /home/oracle

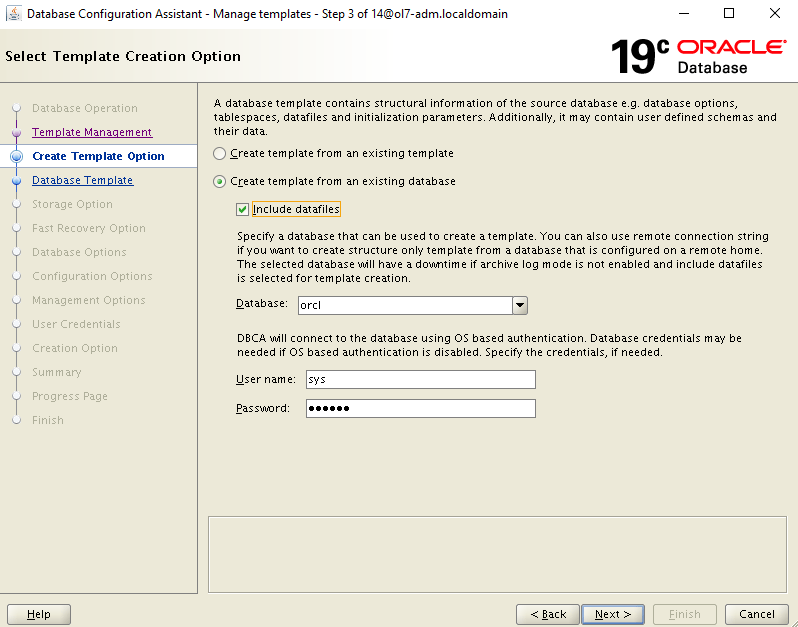

Na próxima etapa irei colocar para criar o template com base no banco de dados existente (ORCL), incluindo data files  e deixarei como usuário sys

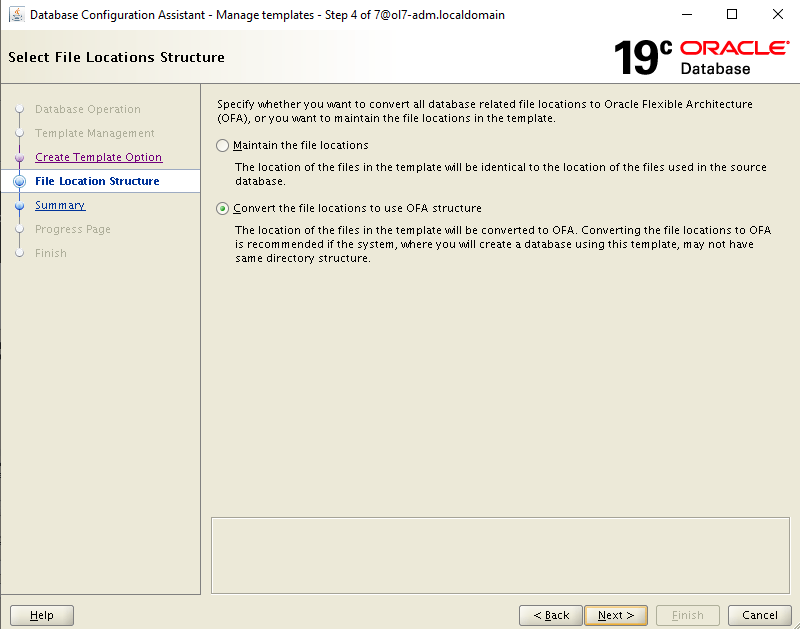

Depois colocar a localização dos arquivos para usar a estrutura do Optimal Flexible Architecture (OFA)

Após clicar em “next”, irei enviar os arquivos de template para o primeiro nó através do scp

[oracle@ol7-adm ~]$ ls
[main.log  Linux.X64_193000_db_home.zip  orcl_convert.ctl  orcl_convert.dbc  orcl_convert.dbf1  orcl_convert.dbf2  orcl_convert.dbf3
[oracle@ol7-adm ~]$ scp orcl_convert.* 192.168.15.40:/home/oracle
The authenticity of host '192.168.15.40 (192.168.15.40)' can't be established.
ECDSA key fingerprint is SHA256:GcJG8VYxVNsGafJWLQ79IiBeAxbCesz6eXTI Iz0n8+w.
ECDSA key fingerprint is MD5:4a:c5:b1:5f:01:43:cc:96:f2:f7:ea:5f:5b:e7:18:88.
Are you sure you want to continue connecting (yes/no)? yes
Warning: Permanently added '192.168.15.40' (ECDSA) to the list of known hosts.
oracle@192.168.15.40's password:
orcl_convert.ctl                                   100%   18MB  95.0MB/s   00:00
orcl_convert.dbc                                   100%   6940   6.4MB/s   00:00
orcl_convert.dbf1
orcl_convert.dbf2
orcl_convert.dbf3
[oracle@ol7-adm ~]$

Ao executar o dbca agora no nosso nó orcl19r1 vamos realizar os seguintes passos:

Create database

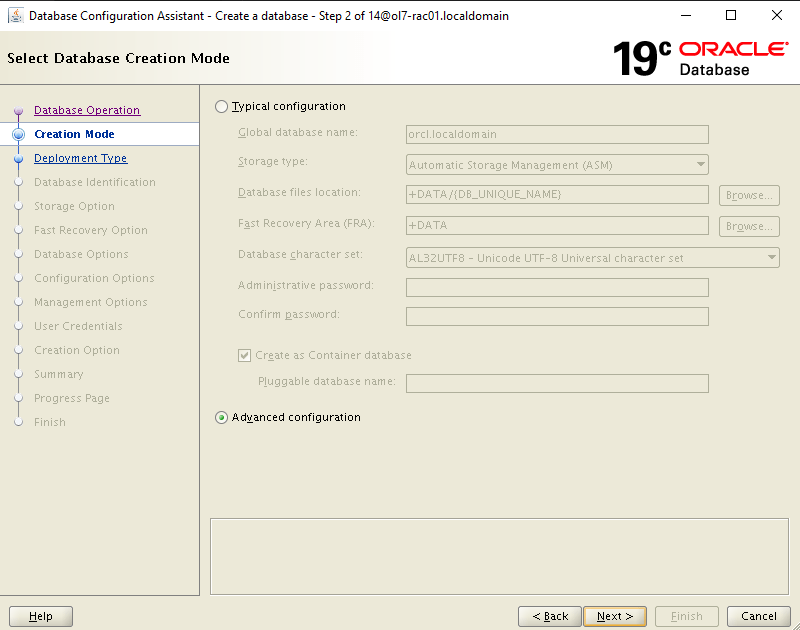

Advanced configuration

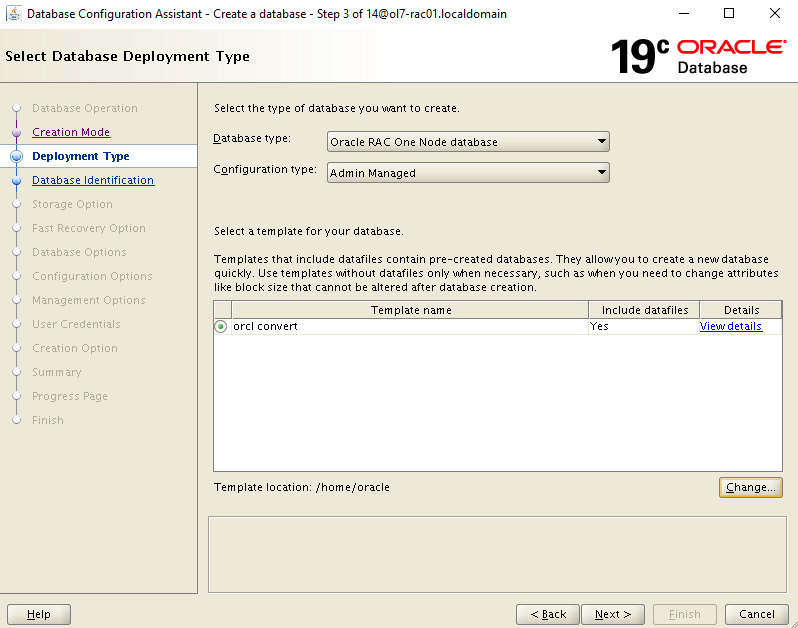

Nessa próxima parte vou selecionar no Database type o a opção de One Node database e incluir o template orcl_convert que está localizado no /home/oracle

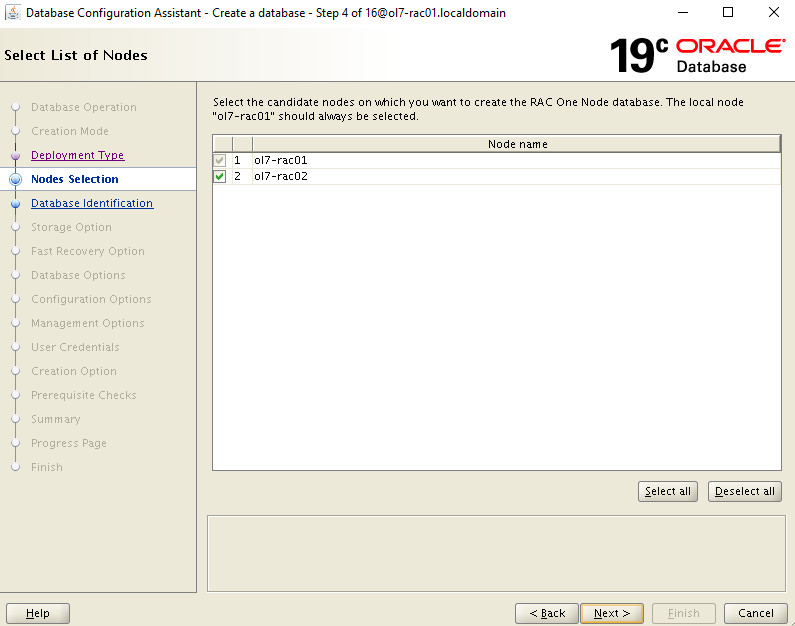

Após isso os 2 nós já estão selecionados então já posso continuar o procedimento

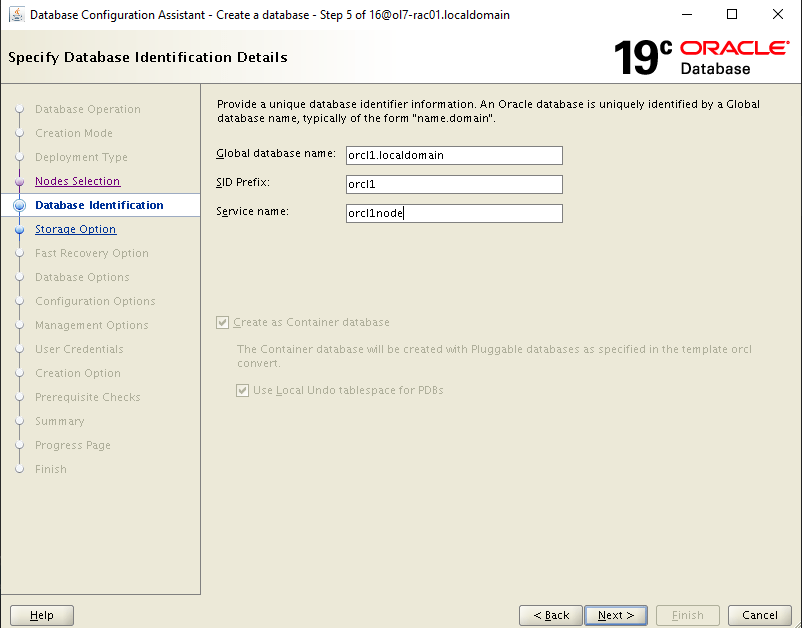

Vou especificar os nomes para o banco

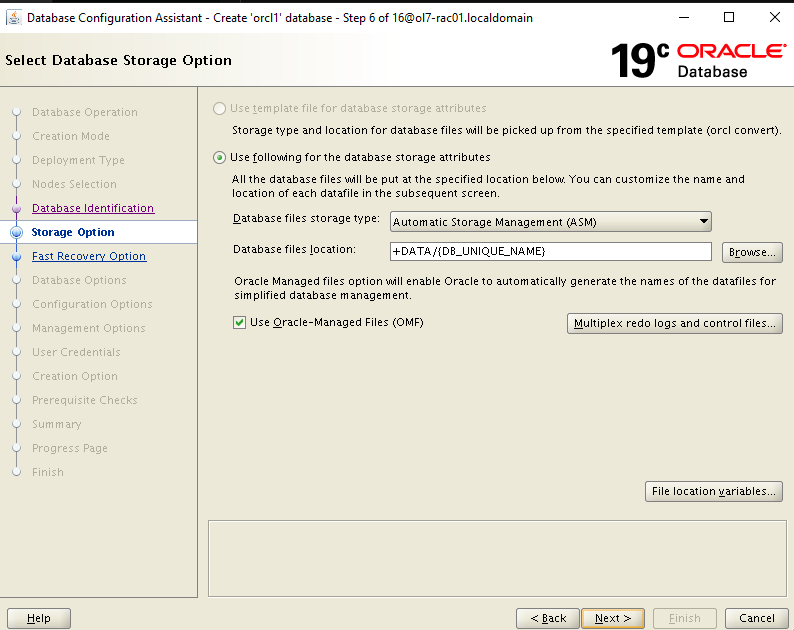

Habilitando o ASM e o OMF

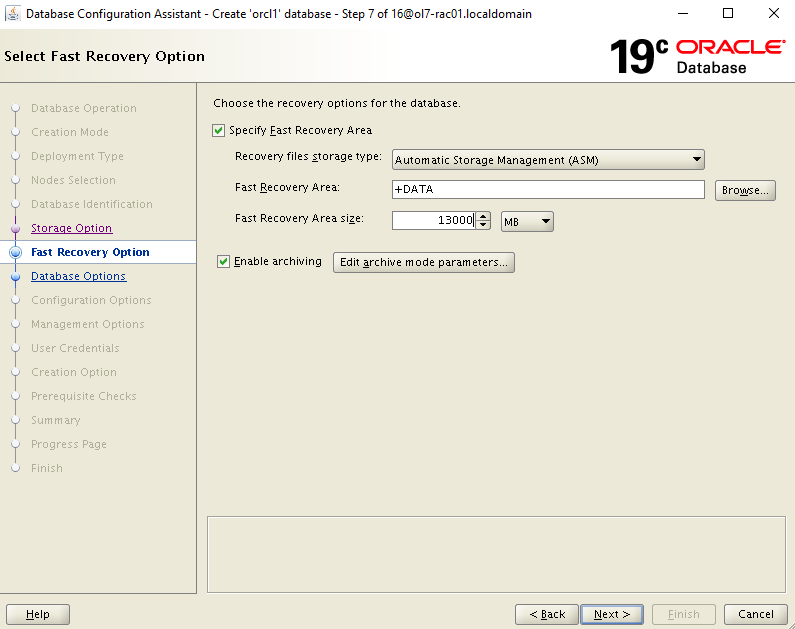

Especificaremos o valor da fast recovery area

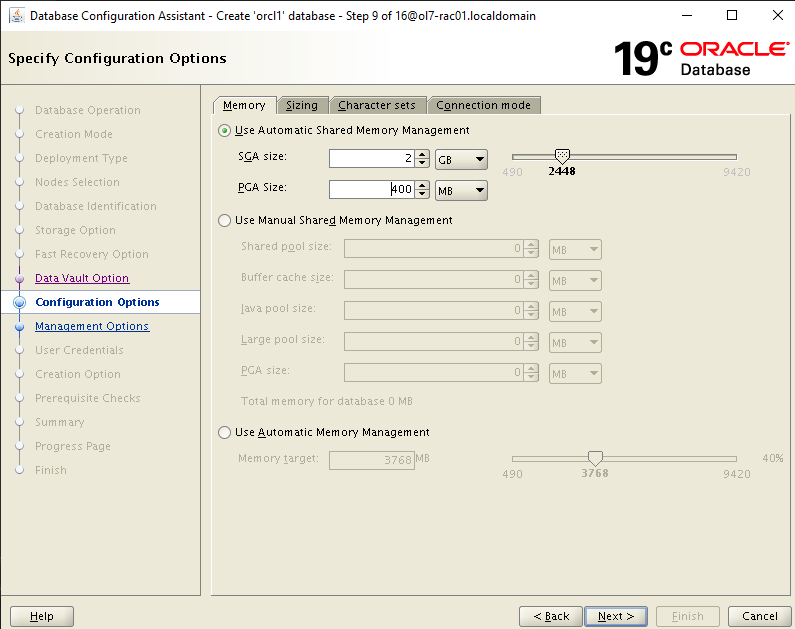

Próxima parte que vamos configurar é a nossa memória do SGA e PGA

Após isso podemos finalizar sem nenhuma configuração extra e validar o que o RMAN está executando através do alert_log que aparecerá no diretório do dbca

[RMANEngine.readSqlOutput:997] Log RMAN Output=executing command: SET NEWNAME
[RMANEngine.readSqlOutput:997] Log RMAN Output=
[RMANEngine.readSqlOutput:997] Log RMAN Output=Starting restore at 23-MAY-24
[RMANEngine.readSqlOutput:997] Log RMAN Output=using channel ORA_DISK_1
[RMANEngine.readSqlOutput:997] Log RMAN Output=
[RMANEngine.readSqlOutput:997] Log RMAN Output=channel ORA_DISK_1: starting datafile backup set restore
[RMANEngine.readSqlOutput:997] Log RMAN Output=channel ORA_DISK_1: specifying datafile(s) to restore from backup set
[RMANEngine.readSqlOutput:997] Log RMAN Output=channel ORA_DISK_1: restoring datafile 00011 to +DATA
[RMANEngine.readSqlOutput:997] Log RMAN Output=channel ORA_DISK_1: reading from backup piece /home/oracle/orcl_convert.dbf2
[RMANEngine.readSqlOutput:997] Log RMAN Output=channel ORA_DISK_1: piece handle=/home/oracle/orcl_convert.dbf2 tag=TAG20240523T235201
[RMANEngine.readSqlOutput:997] Log RMAN Output=channel ORA_DISK_1: restored backup piece 1
[RMANEngine.readSqlOutput:997] Log RMAN Output=channel ORA_DISK_1: restore complete, elapsed time: 00:00:07
[RMANEngine.readSqlOutput:997] Log RMAN Output=Finished restore at 23-MAY-24
[RMANEngine.readSqlOutput:997] Log RMAN Output=
[RMANEngine.readSqlOutput:997] Log RMAN Output=Starting restore at 23-MAY-24
[RMANEngine.readSqlOutput:997] Log RMAN Output=using channel ORA_DISK_1
[RMANEngine.readSqlOutput:997] Log RMAN Output=
[RMANEngine.readSqlOutput:997] Log RMAN Output=channel ORA_DISK_1: starting datafile backup set restore
[RMANEngine.readSqlOutput:997] Log RMAN Output=channel ORA_DISK_1: specifying datafile(s) to restore from backup set
[RMANEngine.readSqlOutput:997] Log RMAN Output=channel ORA_DISK_1: restoring datafile 00001 to +DATA
[RMANEngine.readSqlOutput:997] Log RMAN Output=channel ORA_DISK_1: reading from backup piece /home/oracle/orcl_convert.dbf1
[RMANEngine.readSqlOutput:997] Log RMAN Output=channel ORA_DISK_1: piece handle=/home/oracle/orcl_convert.dbf1 tag=TAG20240523T235201
[RMANEngine.readSqlOutput:997] Log RMAN Output=channel ORA_DISK_1: restored backup piece 1
[RMANEngine.readSqlOutput:997] Log RMAN Output=channel ORA_DISK_1: restore complete, elapsed time: 00:00:55
[RMANEngine.readSqlOutput:997] Log RMAN Output=Finished restore at 23-MAY-24
[RMANEngine.readSqlOutput:997] Log RMAN Output=
[RMANEngine.readSqlOutput:997] Log RMAN Output=Starting restore at 23-MAY-24
[RMANEngine.readSqlOutput:997] Log RMAN Output=using channel ORA_DISK_1
[RMANEngine.readSqlOutput:997] Log RMAN Output=
[RMANEngine.readSqlOutput:997] Log RMAN Output=channel ORA_DISK_1: starting datafile backup set restore
[RMANEngine.readSqlOutput:997] Log RMAN Output=channel ORA_DISK_1: specifying datafile(s) to restore from backup set
[RMANEngine.readSqlOutput:997] Log RMAN Output=channel ORA_DISK_1: restoring datafile 00012 to +DATA
[RMANEngine.readSqlOutput:997] Log RMAN Output=channel ORA_DISK_1: reading from backup piece /home/oracle/orcl_convert.dbf2
[RMANEngine.readSqlOutput:997] Log RMAN Output=channel ORA_DISK_1: piece handle=/home/oracle/orcl_convert.dbf2 tag=TAG20240523T235201
[RMANEngine.readSqlOutput:997] Log RMAN Output=channel ORA_DISK_1: restored backup piece 1
[RMANEngine.readSqlOutput:997] Log RMAN Output=channel ORA_DISK_1: restore complete, elapsed time: 00:00:01
[RMANEngine.readSqlOutput:997] Log RMAN Output=Finished restore at 23-MAY-24
[RMANEngine.readSqlOutput:997] Log RMAN Output=
[RMANEngine.readSqlOutput:997] Log RMAN Output=Starting restore at 23-MAY-24
[RMANEngine.readSqlOutput:997] Log RMAN Output=using channel ORA_DISK_1
[RMANEngine.readSqlOutput:997] Log RMAN Output=
[RMANEngine.readSqlOutput:997] Log RMAN Output=channel ORA_DISK_1: starting datafile backup set restore
[RMANEngine.readSqlOutput:997] Log RMAN Output=channel ORA_DISK_1: specifying datafile(s) to restore from backup set
[RMANEngine.readSqlOutput:997] Log RMAN Output=channel ORA_DISK_1: restoring datafile 00003 to +DATA
[RMANEngine.readSqlOutput:997] Log RMAN Output=channel ORA_DISK_1: reading from backup piece /home/oracle/orcl_convert.dbf1
[RMANEngine.readSqlOutput:997] Log RMAN Output=channel ORA_DISK_1: piece handle=/home/oracle/orcl_convert.dbf1 tag=TAG20240523T235201
[RMANEngine.readSqlOutput:997] Log RMAN Output=channel ORA_DISK_1: restored backup piece 1
[RMANEngine.readSqlOutput:997] Log RMAN Output=channel ORA_DISK_1: restore complete, elapsed time: 00:00:35
[RMANEngine.readSqlOutput:997] Log RMAN Output=Finished restore at 23-MAY-24
[RMANEngine.readSqlOutput:997] Log RMAN Output=
[RMANEngine.readSqlOutput:997] Log RMAN Output=Starting restore at 23-MAY-24
[RMANEngine.readSqlOutput:997] Log RMAN Output=using channel ORA_DISK_1
[RMANEngine.readSqlOutput:997] Log RMAN Output=
[RMANEngine.readSqlOutput:997] Log RMAN Output=channel ORA_DISK_1: starting datafile backup set restore
[RMANEngine.readSqlOutput:997] Log RMAN Output=channel ORA_DISK_1: specifying datafile(s) to restore from backup set
[RMANEngine.readSqlOutput:997] Log RMAN Output=channel ORA_DISK_1: restoring datafile 00004 to +DATA
[RMANEngine.readSqlOutput:997] Log RMAN Output=channel ORA_DISK_1: reading from backup piece /home/oracle/orcl_convert.dbf1
[RMANEngine.readSqlOutput:997] Log RMAN Output=channel ORA_DISK_1: piece handle=/home/oracle/orcl_convert.dbf1 tag=TAG20240523T235201
[RMANEngine.readSqlOutput:997] Log RMAN Output=channel ORA_DISK_1: restored backup piece 1
[RMANEngine.readSqlOutput:997] Log RMAN Output=channel ORA_DISK_1: restore complete, elapsed time: 00:00:25
[RMANEngine.readSqlOutput:997] Log RMAN Output=Finished restore at 23-MAY-24
[RMANEngine.readSqlOutput:997] Log RMAN Output=
[RMANEngine.readSqlOutput:997] Log RMAN Output=Starting restore at 23-MAY-24
[RMANEngine.readSqlOutput:997] Log RMAN Output=using channel ORA_DISK_1
[RMANEngine.readSqlOutput:997] Log RMAN Output=
[RMANEngine.readSqlOutput:997] Log RMAN Output=channel ORA_DISK_1: starting datafile backup set restore
[RMANEngine.readSqlOutput:997] Log RMAN Output=channel ORA_DISK_1: specifying datafile(s) to restore from backup set
[RMANEngine.readSqlOutput:997] Log RMAN Output=channel ORA_DISK_1: restoring datafile 00005 to +DATA
[RMANEngine.readSqlOutput:997] Log RMAN Output=channel ORA_DISK_1: reading from backup piece /home/oracle/orcl_convert.dbf3
[RMANEngine.readSqlOutput:997] Log RMAN Output=channel ORA_DISK_1: piece handle=/home/oracle/orcl_convert.dbf3 tag=TAG20240523T235201
[RMANEngine.readSqlOutput:997] Log RMAN Output=channel ORA_DISK_1: restored backup piece 1
[RMANEngine.readSqlOutput:997] Log RMAN Output=channel ORA_DISK_1: restore complete, elapsed time: 00:00:25
[RMANEngine.readSqlOutput:997] Log RMAN Output=Finished restore at 23-MAY-24
[RMANEngine.readSqlOutput:997] Log RMAN Output=
[RMANEngine.readSqlOutput:997] Log RMAN Output=Starting restore at 23-MAY-24
[RMANEngine.readSqlOutput:997] Log RMAN Output=using channel ORA_DISK_1
[RMANEngine.readSqlOutput:997] Log RMAN Output=
[RMANEngine.readSqlOutput:997] Log RMAN Output=channel ORA_DISK_1: starting datafile backup set restore
[RMANEngine.readSqlOutput:997] Log RMAN Output=channel ORA_DISK_1: specifying datafile(s) to restore from backup set
[RMANEngine.readSqlOutput:997] Log RMAN Output=channel ORA_DISK_1: restoring datafile 00006 to +DATA
[RMANEngine.readSqlOutput:997] Log RMAN Output=channel ORA_DISK_1: reading from backup piece /home/oracle/orcl_convert.dbf3

Ao finalizar, já é possível acessarmos o banco

[oracle@ol7-rac01 ~]$ ps -ef | grep pmon
oracle    3055     1  0 14:32 ?        00:00:01 asm_pmon_+ASM1
oracle    5428     1  0 14:33 ?        00:00:02 ora_pmon_orcl19r1
oracle   11874     1  0 23:36 ?        00:00:00 ora_pmon_orcl_1
oracle   21662 26164 0 23:53 pts/2    00:00:00 grep --color=auto pmon
[oracle@ol7-rac01 ~]$ oraenv
ORACLE_SID = [orcl1] ? orcl19r1
The Oracle base remains unchanged with value /u01/app/oracle
[oracle@ol7-rac01 ~]$ ps -ef | grep pmon
oracle    3055     1  0 14:32 ?        00:00:01 asm_pmon_+ASM1
oracle    5428     1  0 14:33 ?        00:00:02 ora_pmon_orcl19r1
oracle   11874     1  0 23:36 ?        00:00:00 ora_pmon_orcl_1
oracle   21773 26164 0 23:53 pts/2    00:00:00 grep --color=auto pmon
[oracle@ol7-rac01 ~]$ oraenv
ORACLE_SID = [orcl19r1] ? orcl1
ORACLE_HOME = [/home/oracle] ? /u01/app/oracle/product/19.3.0/dbhome_1
The Oracle base remains unchanged with value /u01/app/oracle
[oracle@ol7-rac01 ~]$ sqlplus / as sysdba
SQL*Plus: Release 19.0.0.0.0 - Production on Thu May 23 23:54:19 2024
Version 19.3.0.0.0
Copyright (c) 1982, 2019, Oracle.  All rights reserved.
Connected to:
Oracle Database 19c Enterprise Edition Release 19.0.0.0.0 - Production
Version 19.3.0.0.0
SQL> show parameter db_name
NAME                                 TYPE        VALUE
------------------------------------ ----------- ------------------------------
db_name                              string      orcl1

];
